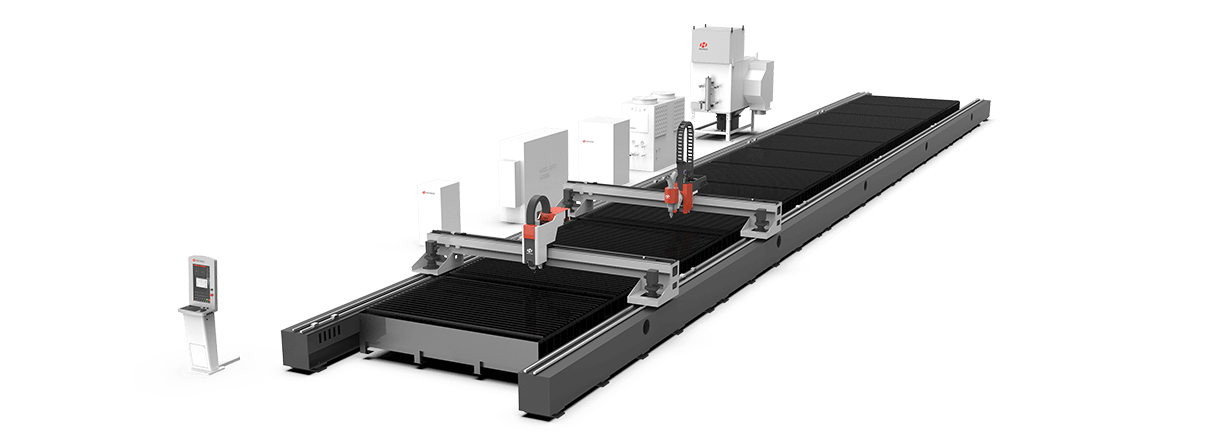

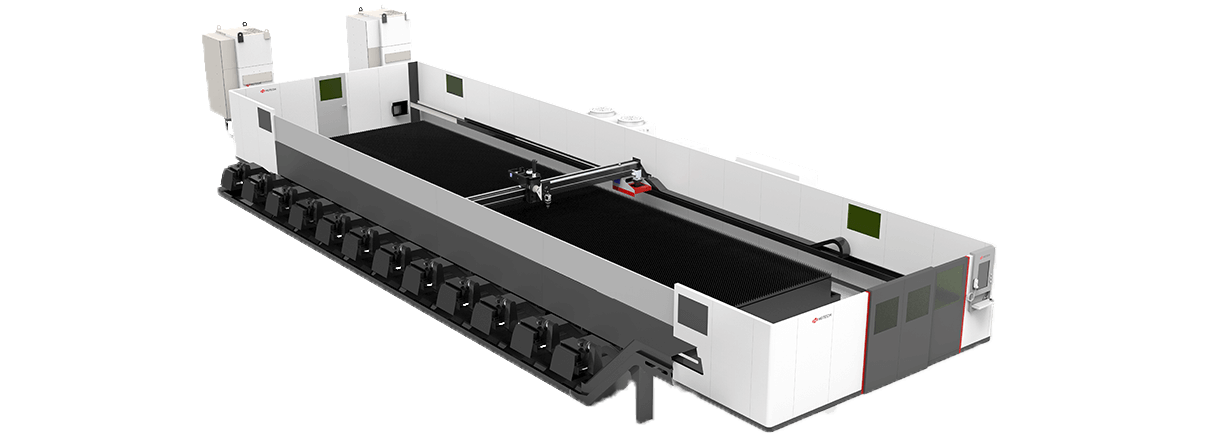

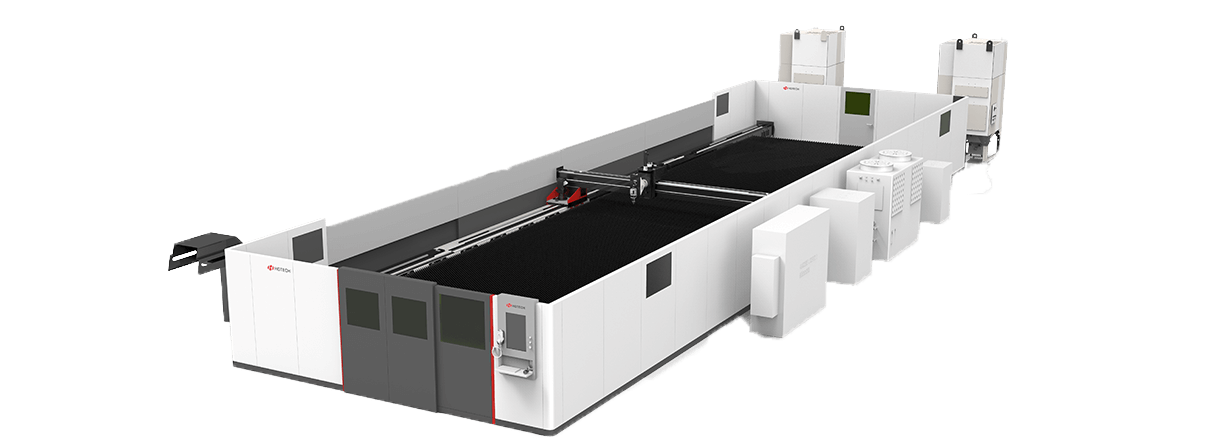

WALC Series

Large-format 3D Five-axis Cutting 1kW-12kW

For the super-size sheet for efficient cutting, batch used in construction machinery, shipbuilding, rail transit industry, etc. And based on the market demand of large quantity of medium and thick plate groove, we independently developed the large-area five-axis groove cutting equipment on the high-speed and high-precision Siemens system.
Large-format 3D Five-axis Cutting 1kW-12kW
WALC Series
For the super-size sheet for efficient cutting, batch used in construction machinery, shipbuilding, rail transit industry, etc. And based on the market demand of large quantity of medium and thick plate groove, we independently developed the large-area five-axis groove cutting equipment on the high-speed and high-precision Siemens system.

DOWNLOAD CENTER

PRODUCT DATA



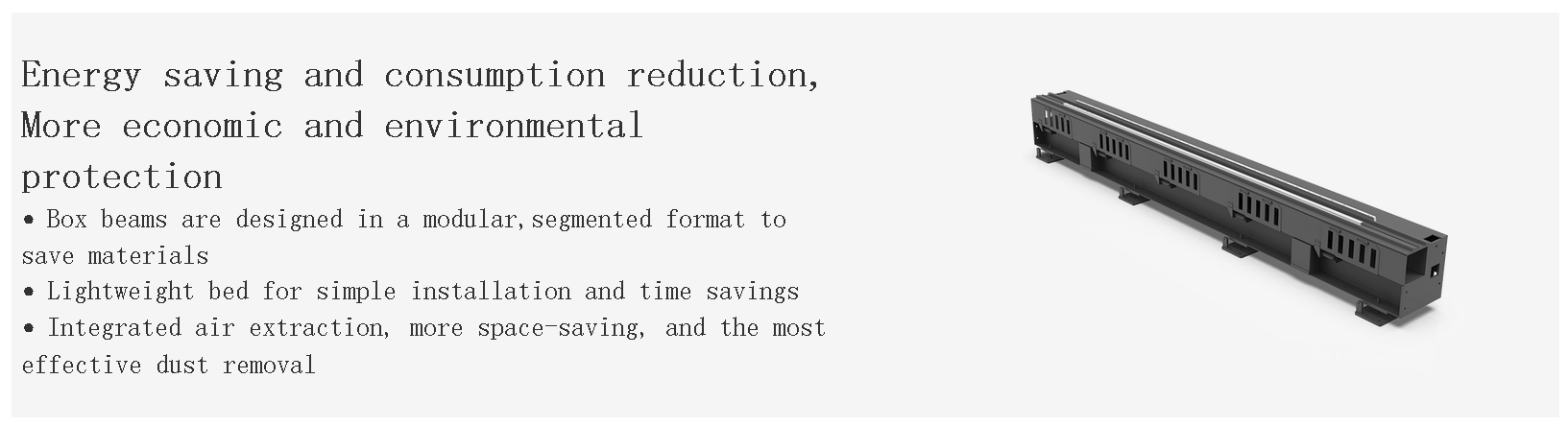

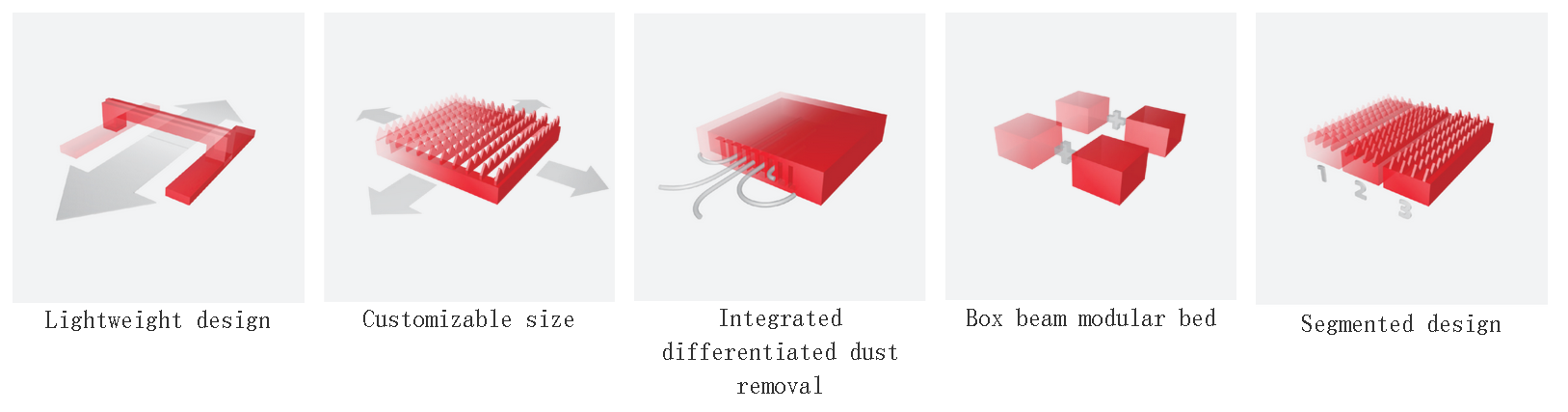

WALC and bevel laser cutting product series have the characteristics of ultra-high power, ultra-large-format (processing format can be customized) high-speed, high-precision, high-stability, and can be used for bevel cutting. This product has good openness and is easy to access the production line and production management system. It is widely used in construction machinery, ships and automobile manufacturing, bridge steel towers and other industries to solve the needs of one-time cutting and bevel cutting of super large plates and workpieces.




















MODELWALC 8030WALC 1235WALC 1830PWALC 2535P
Laser Power6000 - 30000 W
Control SystemSIMENS 840D SL, FARLEY
Vertical CuttingSheet metal: 2D cutting and marking

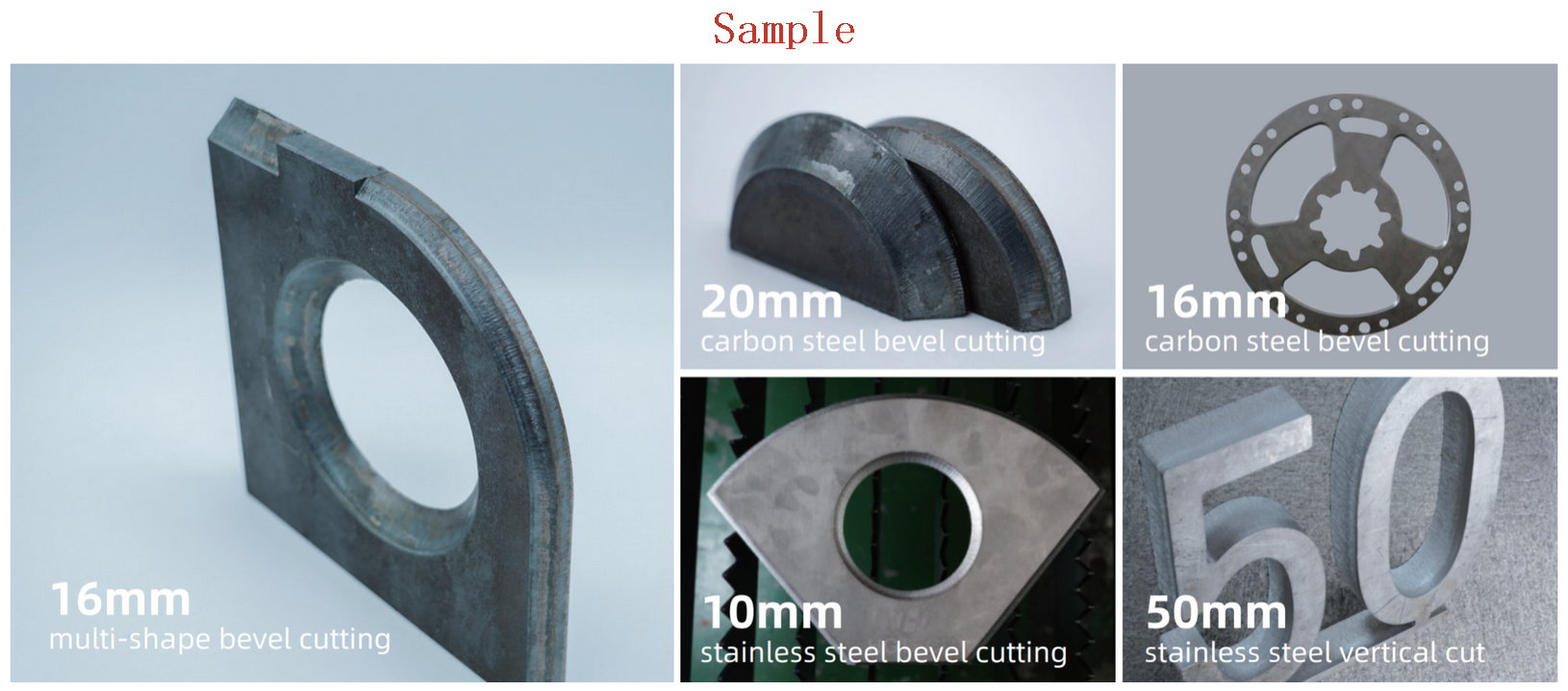

Bevel CuttingCS SS AL: V/Y/X/K bevel cutting within ±45 degrees
Processing Capability
Cutting Thickness: CS(O2)Vertically cut MAX: 60mmVertically cut MAX: 60mm Bevel cutting MAX: 30mm
Cutting Thickness: SS(N2)Vertically cut MAX: 60mmVertically cut MAX: 60mm Bevel cutting MAX: 25mm
Cutting Thickness: AL(N2)Vertically cut MAX: 60mmVertically cut MAX: 60mm Bevel cutting MAX: 20mm
Processing Format And Working Range
Processing Width8000 * 3000mm12000 * 3500mm18000 * 3000mm25000 * 3500mm
K-bevel Processing WidthNA17000 * 2500mm24000 * 3000mm
Route of X-axis8100mm12100mm18100mm25100mm
Route of Y-axis3050mm3550mm3050mm3550mm
Route of Z-axis150mm150mm300mm300mm
Accuracy
Positioning accuracy of X axis0.1mm/10m (≤10m), 0.2mm/full length
Positioning accuracy of Y axis0.05mm
Repeated Positioning accuracy of X axis0.05mm/10m (≤10m), 0.1mm/full length
Positioning accuracy of X axis0.03mm

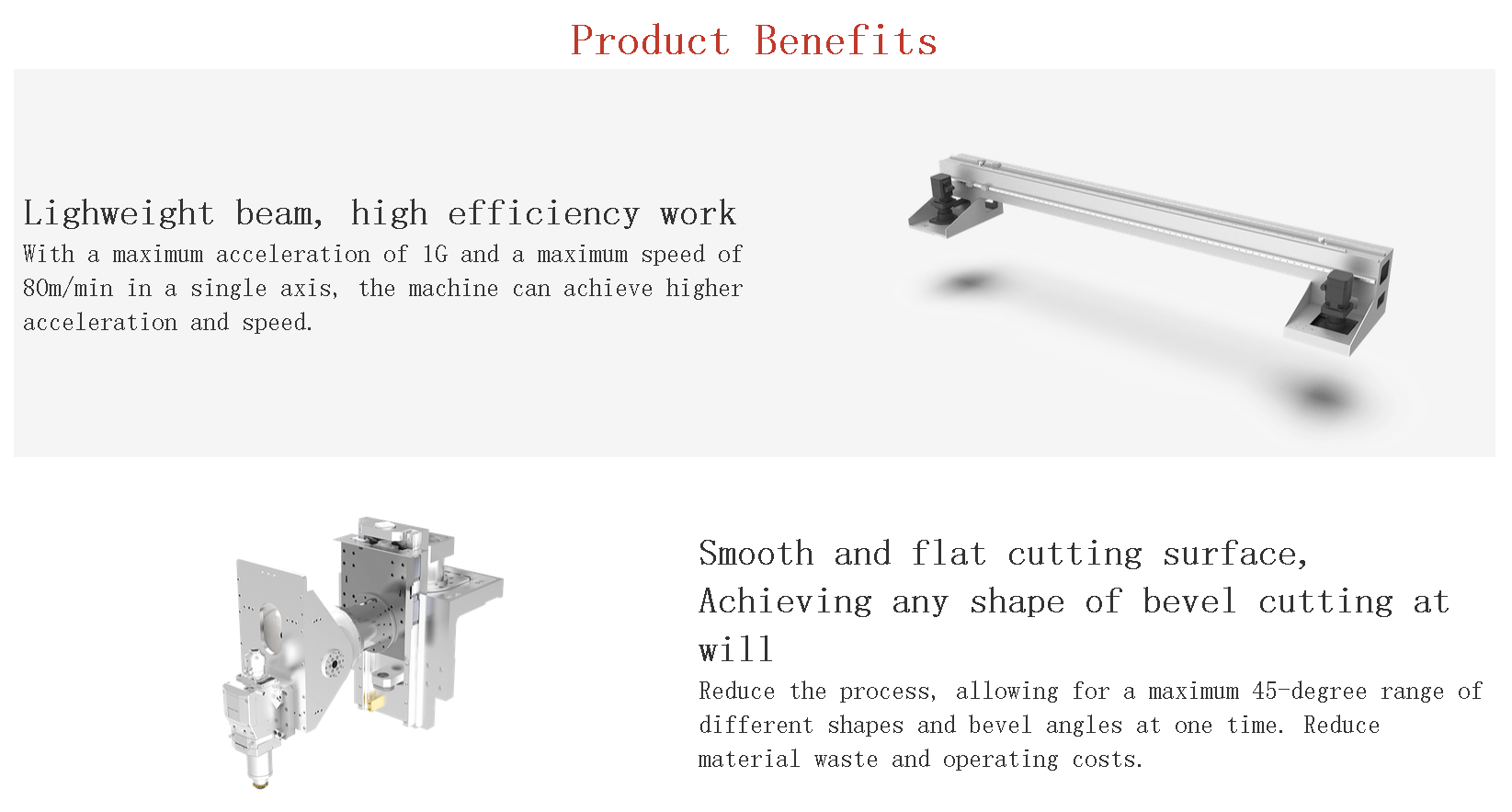

Velocity
Max Acceleration1G
X/Y Axis Max Positioning Speed60m/min
X/Y Axis Max Positioning Con-speed84m/min
